| 브랜드 이름: | Topcon |
|---|---|
| 모델 번호: | GTS3502LN |
| 최소 주문 수량: | 1PC |
| 포장 세부 사항: | 표준 패킹 방법으로 |
| 지불 조건: | 티 / T는, 웨스턴 유니온 |
| 공급 능력: | 년 당 1000 |
| 강조하다: | reflectorless total station,manual total station |
||
|---|---|---|---|
Class1 Safe Pulse Laser EDM
Laser Pointer for Reflectorless Measurement and Layout
Point Guide for Stakeout/Layout

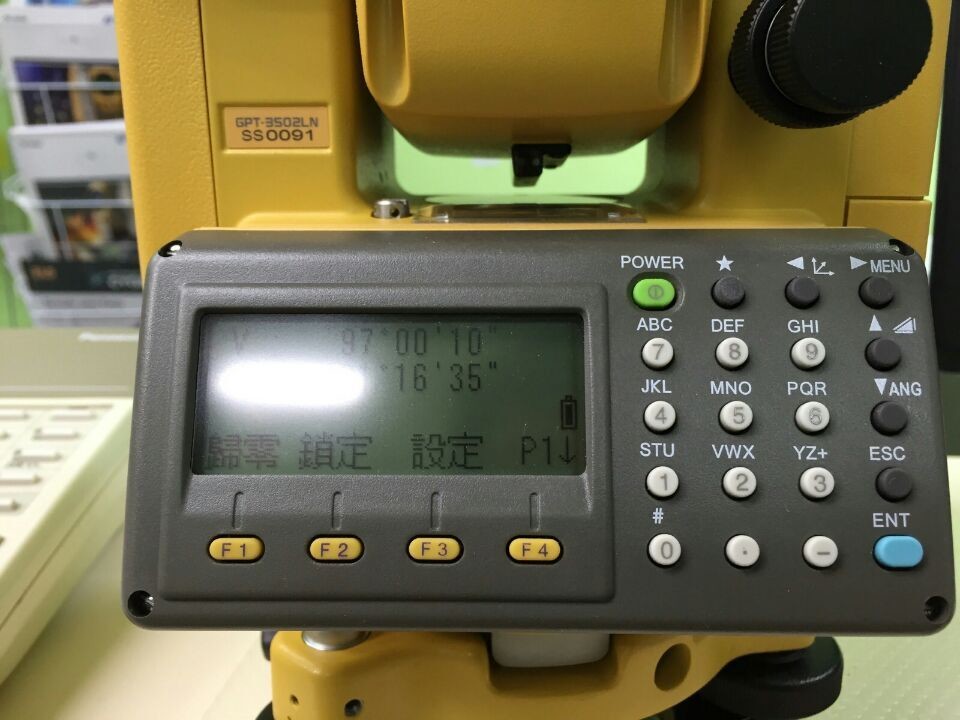

24-Key Alphanumeric Keyboard
Versatile On board Applications Including Road
Rugged IP66 Dust and Water Protection
Powerful 2,000m Reflectorless EDM
A refinement of GPT3502Ln Total Station advanced time-of-flight (pulse) EDM technology in the GPT-3500 allows measuring distances up to 2,000m (6,550 ft.) range without a reflector.
This wide range reflectorless capability enables quick and efficient measuring works in the large area. Also, it increases personal safety without approaching dangerous surface.
Reflectorless Measuring for Any Targets
Powerful reflectorless measuring capability even for narrow object such as power line or tower frame of power line.
Also, it can measure low reflection target like road and ground surface, wood, coal, and any dark color materials.
TopField / Road Software with Alphanumeric Keyboard
The on board "TopField" and "Road" software dramatically increases efficiency in topo data collection, construction layout, as well as road stakeout tasks.
The 24-key alphanumeric keyboard allows for quick inputting of point numbers, codes, attributes, and other necessary data.
|
GPT3502 Ln/lnw |
GPT3505 Ln/lnw |
||
| Distance Measurement | |||
| Measuring Range | |||
| Mini prism | 1000m | ||
| 1 prism | 3000m | ||
| Measurement Accuracy | Fine:±(2mm+2ppmxD)m.s.e. | ||
| Measuring Time | Fine mode 1mm:approx.1.2sec. | ||
| Non-Prism Mode(Diffusing-surface) | |||
| Measuring Range | 1.5m to 250m | ||
| Measurement Accuracy | Fine:±(5mm)m.s.e. | ||
| Measuring Time | Fine mode 1mm:approx.1.2sec. | ||
