| Place of Origin: | China |
|---|---|
| 브랜드 이름: | South |
| 인증: | CE |
| Model Number: | NT-023 |
| 마니그피케이션: | 25.9X | 전원 공급 장치: | 충전식 배터리 |
|---|---|---|---|
| 각도 측정: | 수평: 360°, 수직: 90° | 표시하다: | LCD |
| 레벨링 타입: | 마력적으로 축축한 보정기 | 정확도에서 설정하는 보정기: | ±1각분 |
| 틸트 센서: | A 제공됨 | 가시 거리 정확성: | ≤0.4%D |
Disruptive Innovation in Theodolite
300m Distance Measurement
Supportable for Long-term Working
Standard Laser Pointer
Numeric keypad display unit
2.6 inches big screen
Angle, Distance, Axes on board program
The building axes are the foundation of constructions. When undertaking a project, you have the option to select the appropriate axes based on the positions of points. With the robust Axes Stake Out feature, NT-023 can assist you in accurately locating the stake out point using a more straightforward approach.
``` ```htmlEstablishing building axes is crucial for the execution of construction tasks. During the project, you are able to designate the relevant axes for staking out by considering the positioning of points. Through the efficient Axes Stake Out capability, NT-023 ensures precise determination of the stake out point with greater ease.
| Waterproof Level | IP54 |
|---|---|
| Working Temperature | -20℃ ~ +45℃ |
| Models | NT-023 |
| Horizontal Circle | 1°or 1gon |
| Power Supply | Rechargeable Battery |
| Item Weight | 15.45 Pounds |
| Angle Measurement | Horizontal: 360°, Vertical: 90° |
| Leveling Type | Magnetically Dampened Compensator |
| Compensator Setting Accuracy | ±1 Arc Minute |
| Sight Distance Precision | ≤0.4%D |

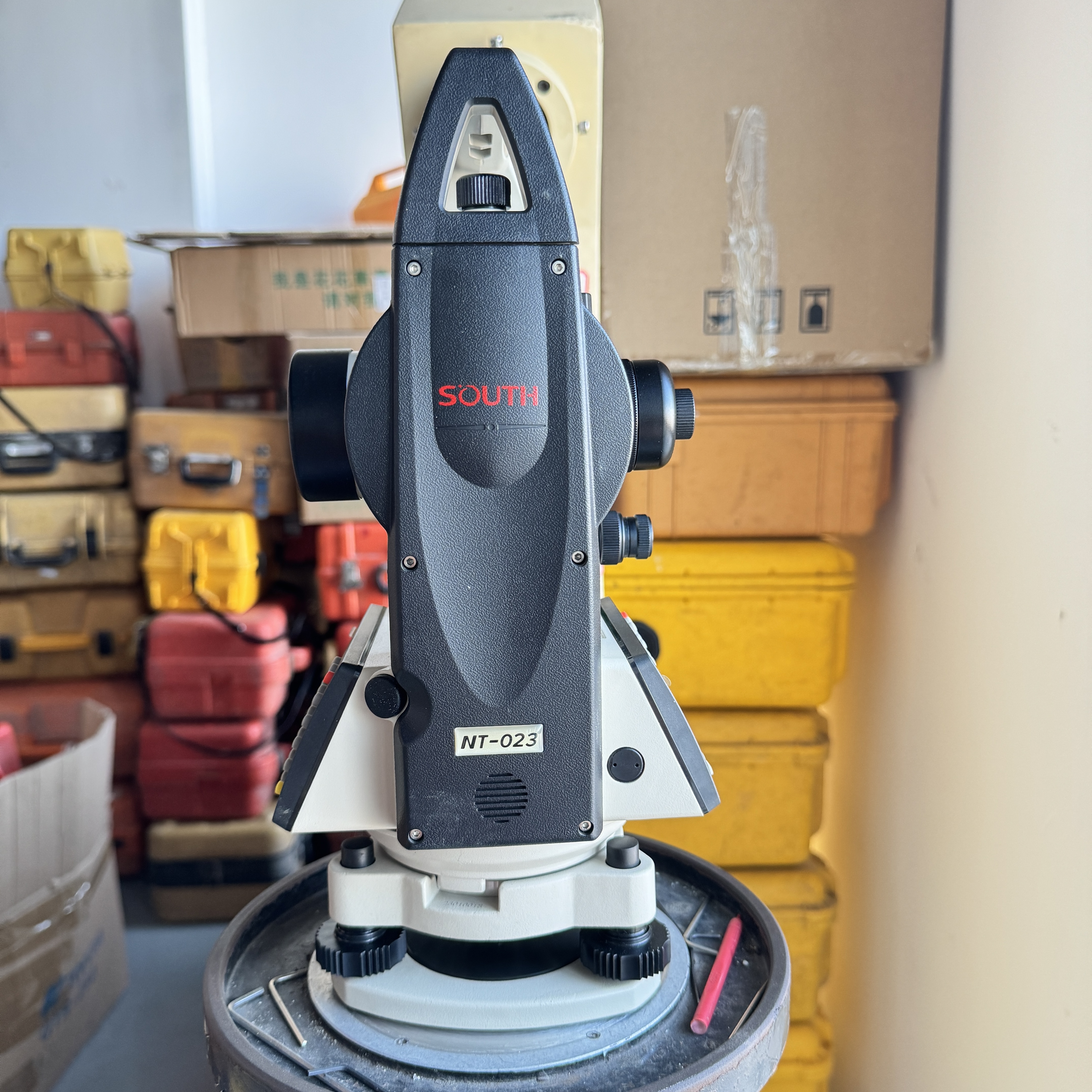

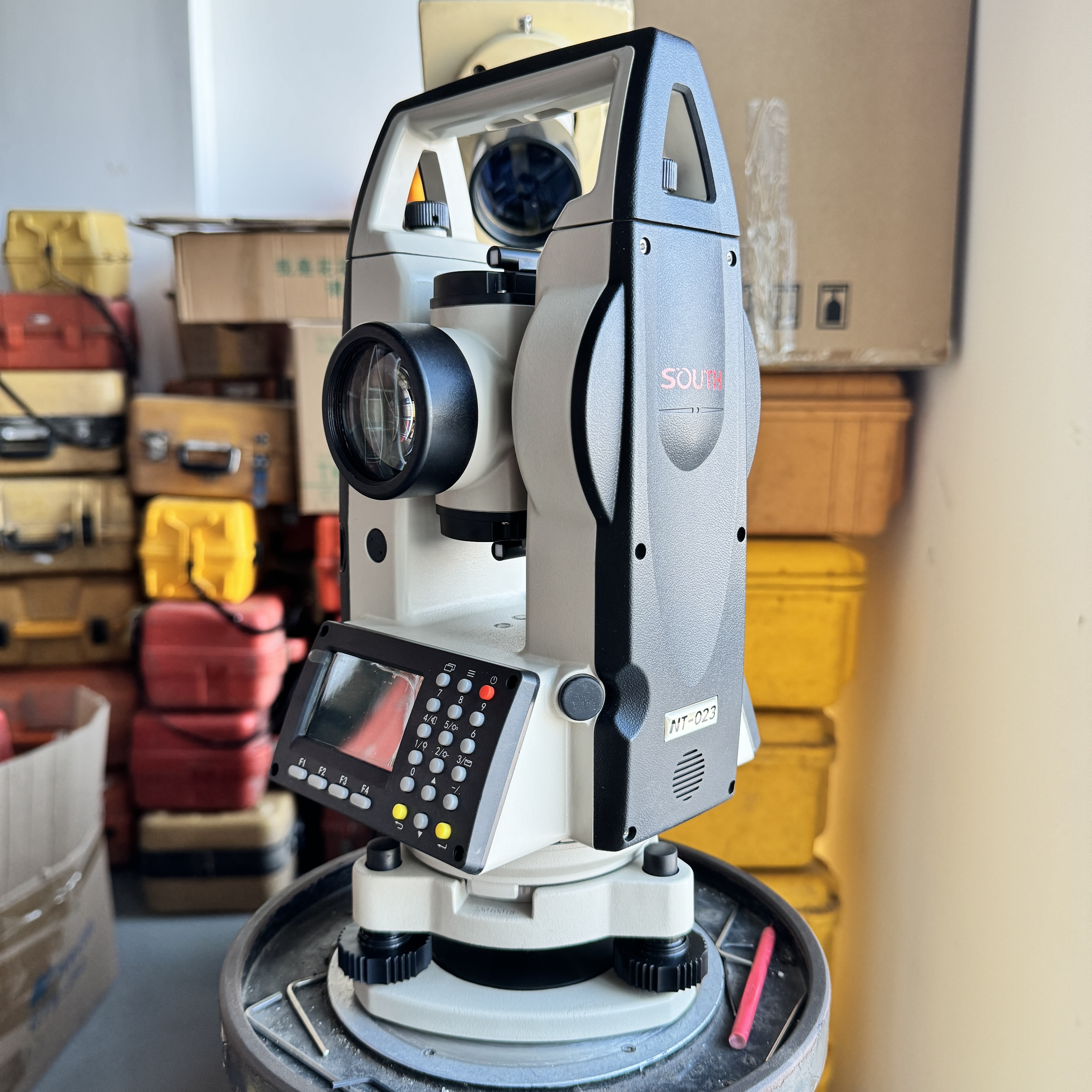

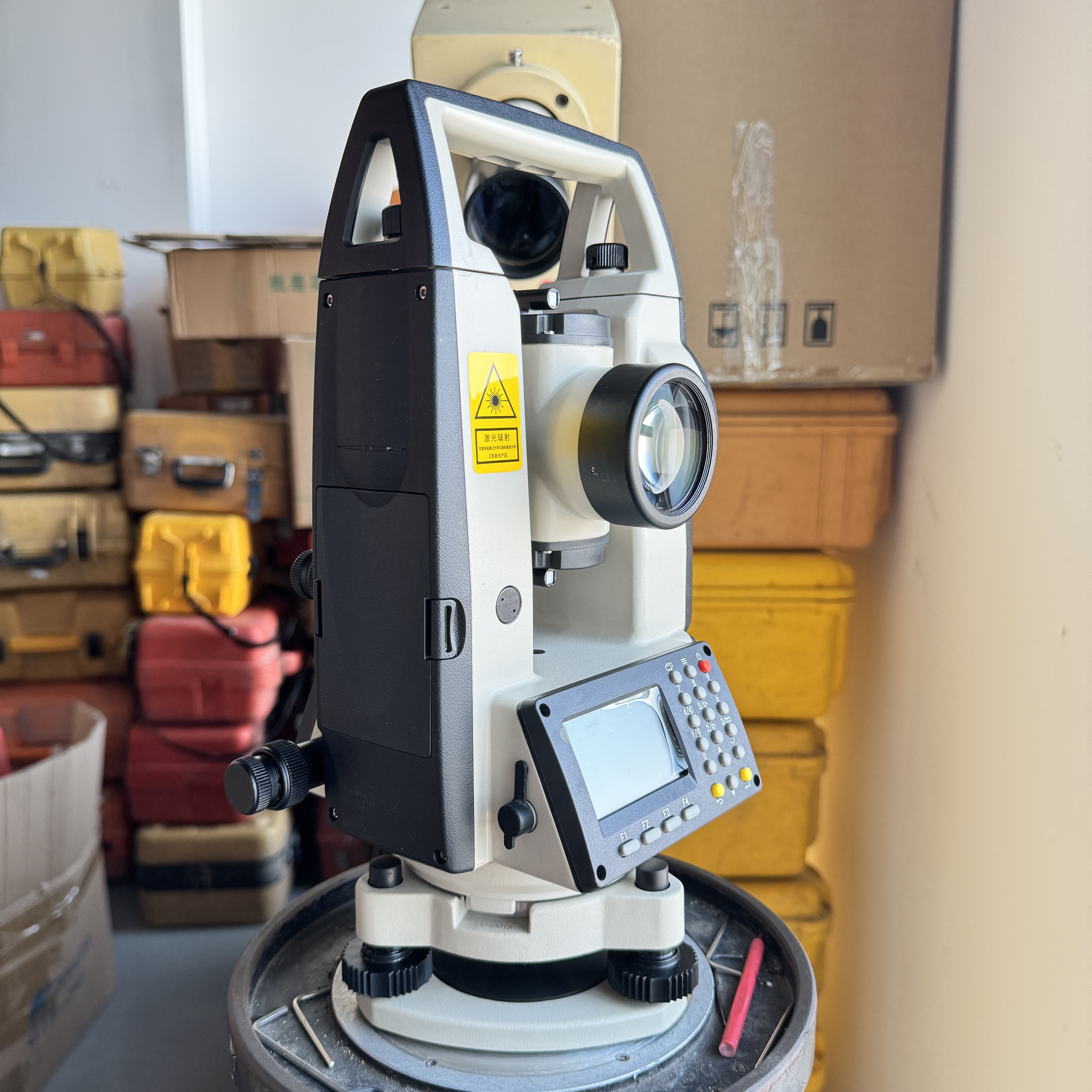

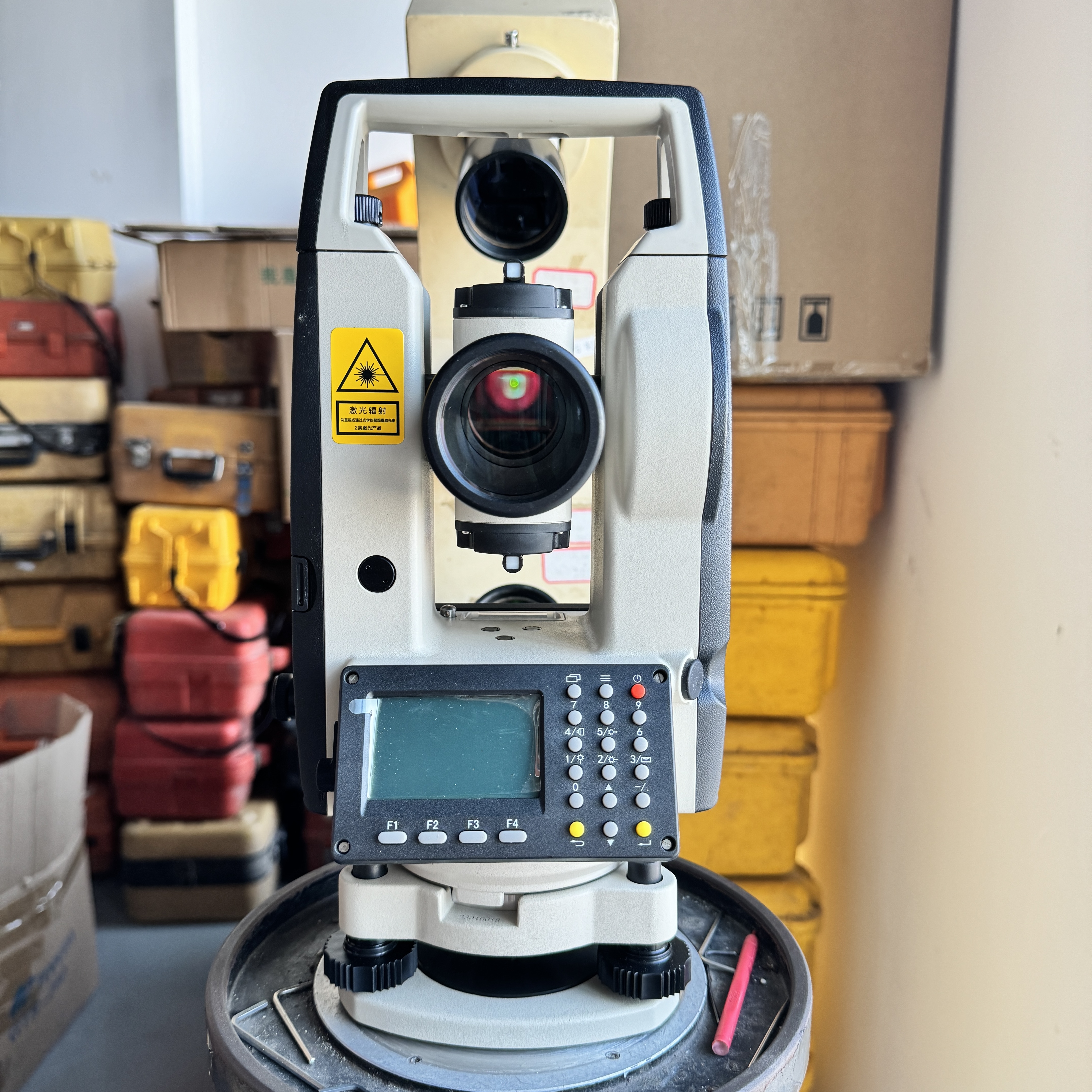

The Electronic Digital Theodolite, model number NT-023 by South Surveying, is a versatile and advanced surveying instrument designed for various applications. With a magnification of 25.9X, this theodolite offers precise measurements of angles and distances, making it ideal for a wide range of surveying tasks.
Thanks to its waterproof level of IP54, the NT-023 theodolite can be used in challenging weather conditions, ensuring reliable performance in the field. The rechargeable battery power supply allows for extended use without the need for frequent recharging, enhancing efficiency during surveying projects.
The NT-023 is equipped with a magnetically dampened compensator for accurate leveling, providing stable and reliable measurements even on uneven terrain. The LCD display offers clear and easy-to-read data, enhancing user experience and efficiency.
Whether you are conducting topographic surveys, construction layout, or engineering projects, the NT-023 electronic digital theodolite is a valuable tool for professionals in the field. Its advanced features and precision make it suitable for a wide range of surveying applications.
With the axes on board program, the NT-023 theodolite offers enhanced functionality for precise measurements and calculations, reducing the need for additional equipment. SOUTH SURVEYING has redefined the theodolite by combining accuracy, durability, and user-friendly design in the NT-023 model, making it a reliable choice for surveyors and engineers.
